AGP 35MM MAGNETIC CORE DRILL 1100W 35MMX50MM SMD351H (FOC 1 PCS CUTTER)
Original price was: RM4,500.00.RM3,185.00Current price is: RM3,185.00.
-
Brand: AGP
- 35mm Annular Cutter Capacity
- Powerful 1100 Watt Motor
- On-Board Coolant Dispenser
- Side Height Lock
- Ideal for drilling structural steel and virtually any metal
Description
FOC CUTTER x1

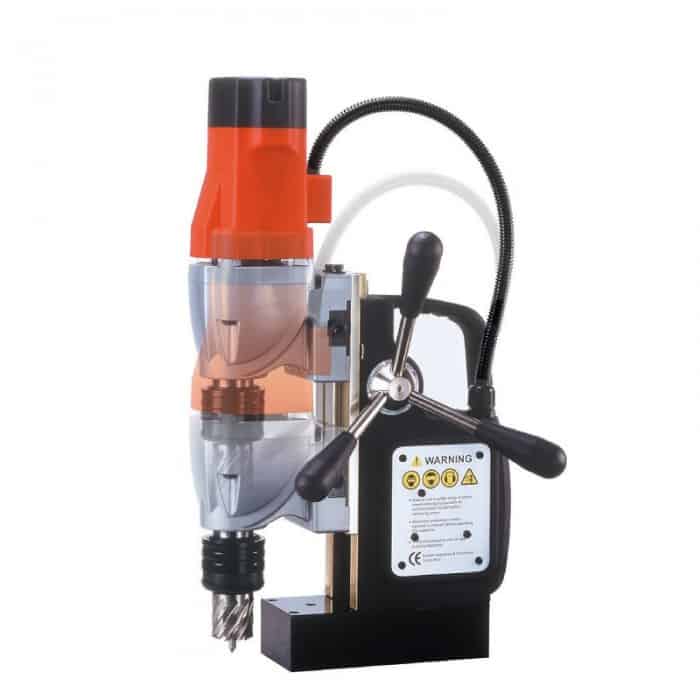

AGP Single Speed 35mm Magnetic Drill 1100W
The AGP 1100W Single Speed Magnetic Drill is the most compact, powerful and reliable portable magnetic drills. It is ideal for drilling structural steel and virtually any metal, its high surface hardness and greater lubricity allow drilling at high operating temperatures with more power and speed. Electronic Safety Shutoff Sensor automatically shuts down the drill motor if the magnet loses contact with the material. This emergency off feature helps to protect both operator and equipment. LED red means insufficient magnetic force. Drilling should not take place, possible causes are too-thin material, coating of lacquer, scale or zinc. LED green means the magnetic adhesion corresponds to the minimum requirements. Drilling can take place. The Drill features keyless, quick-change system for annular cutters which saves times and money. Just twist and lock. These Cutters are ideal for all drilling applications.
Features:
- Compact, powerful and reliable.
- Keyless, quick-change system.
- High surface hardness
- Greater lubricity
- Ideal for drilling structural steel and virtually any metal
- Ideal for all drilling applications.
- Allows drilling at high operating temperatures with more power and speed.
- Electronic Safety Shutoff Sensor
- LED red – Drilling should not take place.
- LED green – Drilling can take place.
- All machine products are assembled and QC in Taiwan
- One Year Machine Warranty
This drill press is equipped with a powerful electromagnet which securely magnetizes the drill directly onto the working material & will not operate unless the electromagnet switch is directly activated. The powerful 1100 Watt motor that drives this single speed, quick release chuck model is easily capable of cutting up to a HUGE 35mm diameter hole. Excellent quality that will easily match other far more expensive machines available elsewhere.
Product Specification
Model | SMD351H | |
---|---|---|
Power Input | 1100W | |
Voltage | 220-240V~ 50-60Hz | |
No / Full Load Min-1 | 730 / 440 | |
Max. Capacity | Dia. X Depth Of Cut | 35mm x 50mm ( 1-3/8″ x 2″) |
Dia. X Depth Twist Drill Bit | 13mm x 140mm (1/2″ x 5-1/2″) |
|
Magnetic Adhesion | 17,000 N | |
Net Weight | 16kg (30.86 Lbs) |
Downloads (Product Manual)

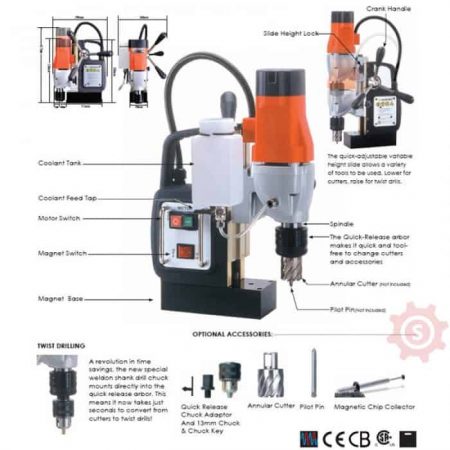

Optional Accessories:
- HSS & TCT Annular Cutter
- Pilot pin
- Magnetic Chip Collector
- Adaptor and 13mm chuck
Additional information
Weight | 16.00 kg |
---|---|
Brand | AGP |

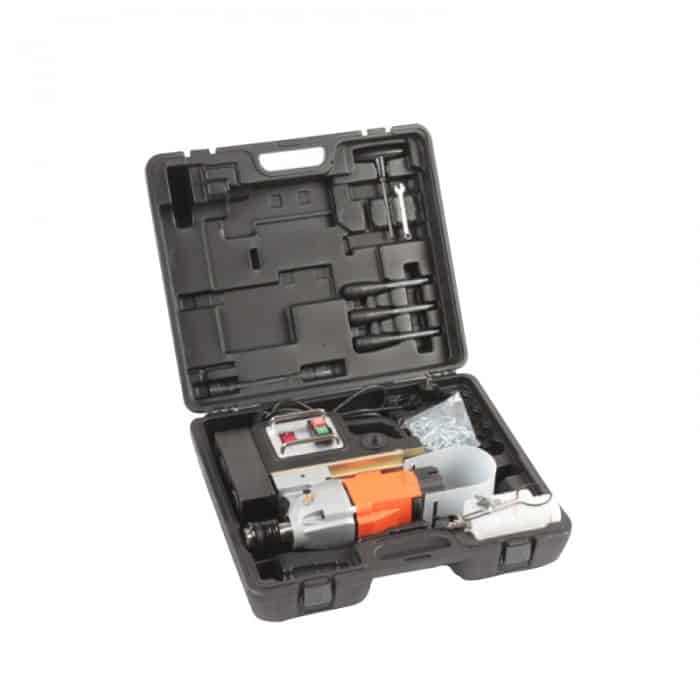

- AGP Magnetic Based Drill
- Wrench M8
- Hex. Key M2.5
- Hex. Key M4
- T- Wrench M6
- Coolant Tank Kit
- Safety Chain
- Chip Guard Kit
