LEO 4XRM3/22-1.5 STAINLESS STEEL BOREHOLE PUMP PLANTATION Pam Air Perladangan [1 PHASE] (1.5KW/220V)

Description

FREE: FACE SHIELD (SOFT)

LEO 2HP Stainless Steel Borehole Pump

Application:
– For water supply from wells or reservoirs
– For domestic use, for civil and industrial applications
– For garden use and irrigation

Operating conditions:
– Maximum fluid temperature up to +35°C
– Maximum sand content: 0.25%
– Maximum immersion: 80 m
– Minimum well diameter: 3″

Motor and Pump:
– Rewindable motor or full obturated screen motor
– Three-phase: 380V-415V/50Hz
– Single-phase: 220V-240V/50Hz
– Pumps are designed by casing stressed

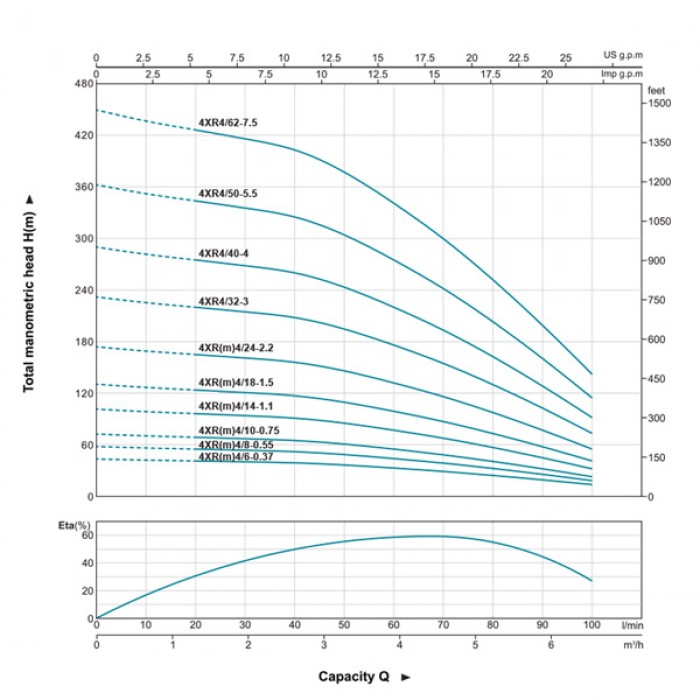

– Curve tolerance according to ISO 9906

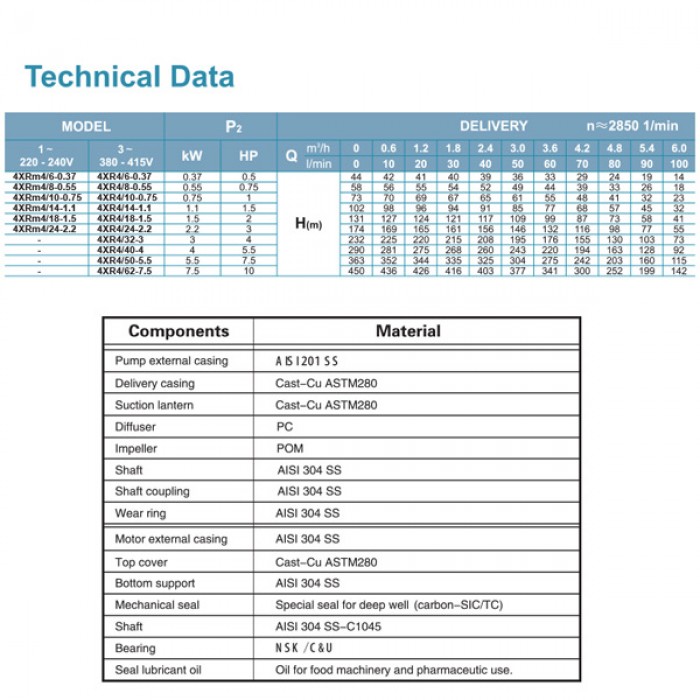

Brand : LEO Pump

Model : 4XRM3/22-1.5

Power : 1.5KW / 2.0HP

Flow Rate (litre/min) : 20 – 80

Head (m) : 150 – 44

Inlet / Outlet : 1-1/2″
