– For water supply from wells or reservoirs
– For domestic use, for civil and industrial applications
– For garden use and irrigation
Operating conditions
– Maximum fluid temperature up to +35°C
– Maximum sand content: 0.25%
– Maximum immersion: 80m
– Minimum well diameter: 3”
Motor and Pump
– Rewindable motor or full obturated screen motor
– Three-phase: 380V-415V/50Hz
– Single-phase: 220V-240V/50Hz
– Pumps are designed by casing stressed
– Curve tolerance according to ISO 9906

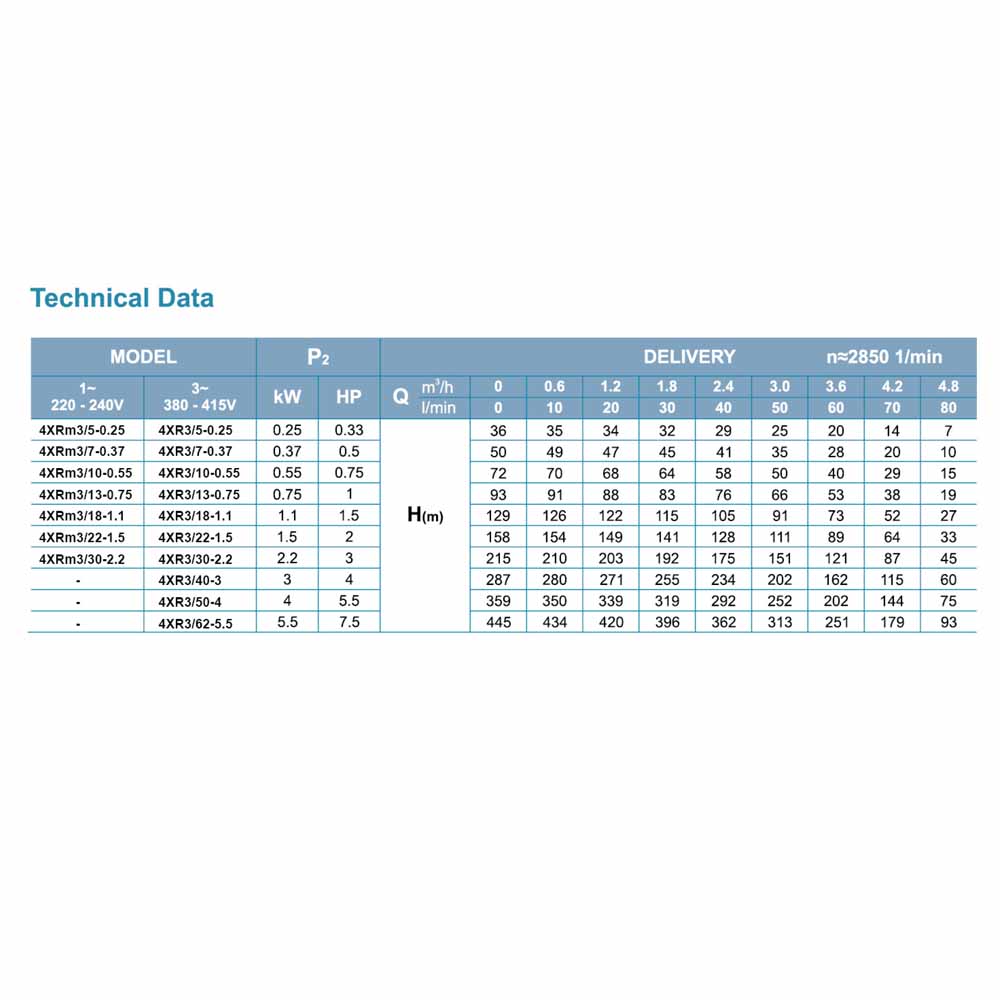

Power: 2.2kW / 3HP
Flow: 20-80 L/min

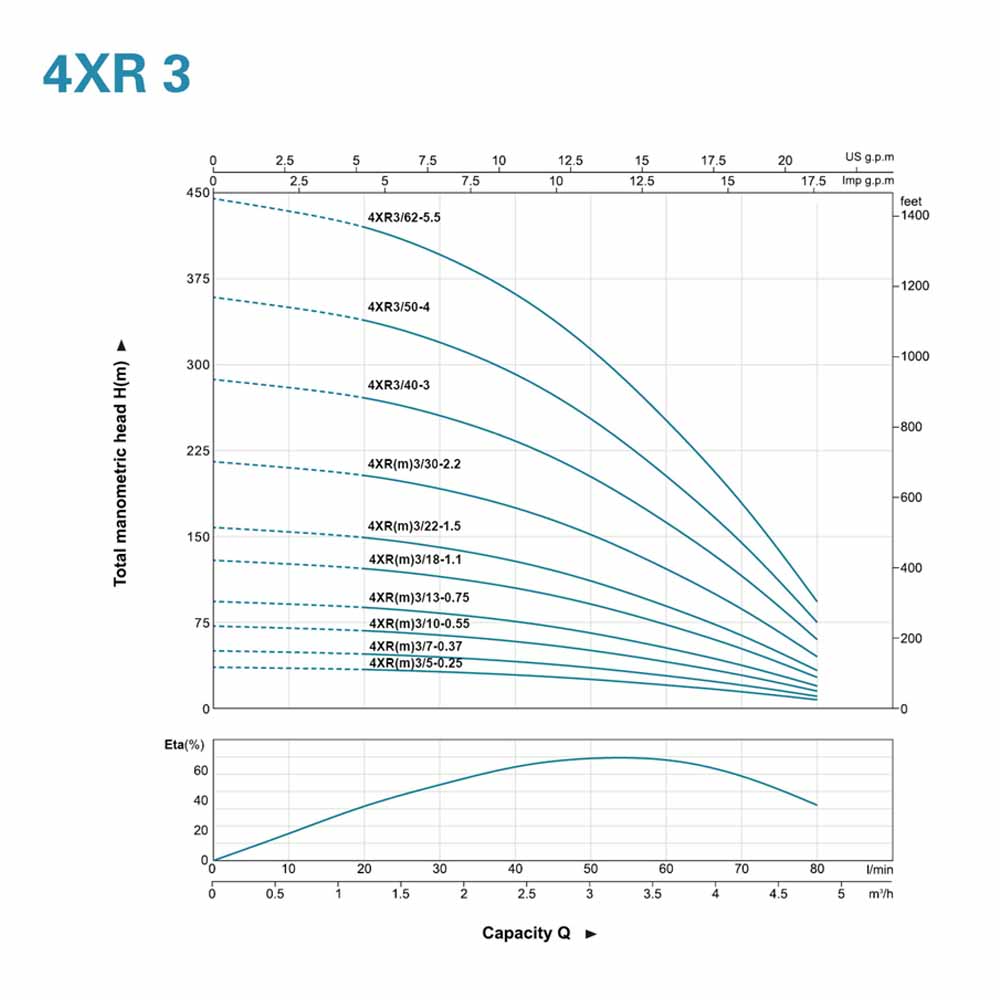

Head: 210m-66m
Max suction: 80m
Outlet: 1 1/2’’
Brand: LEO Pump

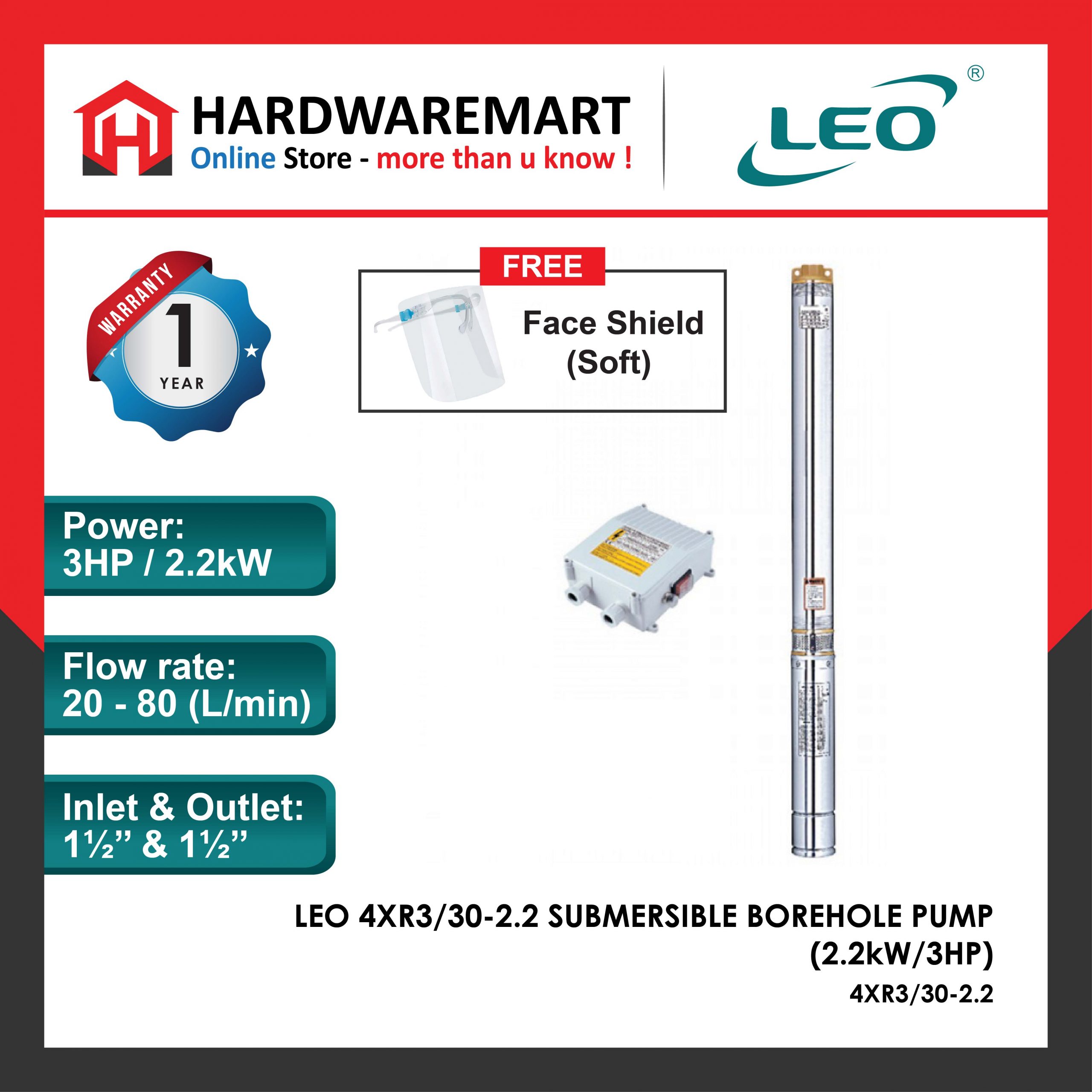

![LEO 4XR3/30-2.2 SUBMERSIBLE BOREHOLE PUMP PLANTATION Pam Air Perladangan [3 PHASE] (2.2kW/3HP)](https://www.hardwaremart.my/login/wp-content/uploads/2020/12/Hardwaremart-Leo-borehole-pump-FOC-FACE-SHIELD-template-14-scaled-450x450.jpg "Hardwaremart Leo borehole pump (FOC FACE SHIELD) template-14")
