LEO 4XRM6/8-0.75 SUBMERSIBLE BOREHOLE PUMP PLANTATION Pam Air Perladangan [1 PHASE] (750W/1HP)

Description

FREE: FACE SHIELD (SOFT)

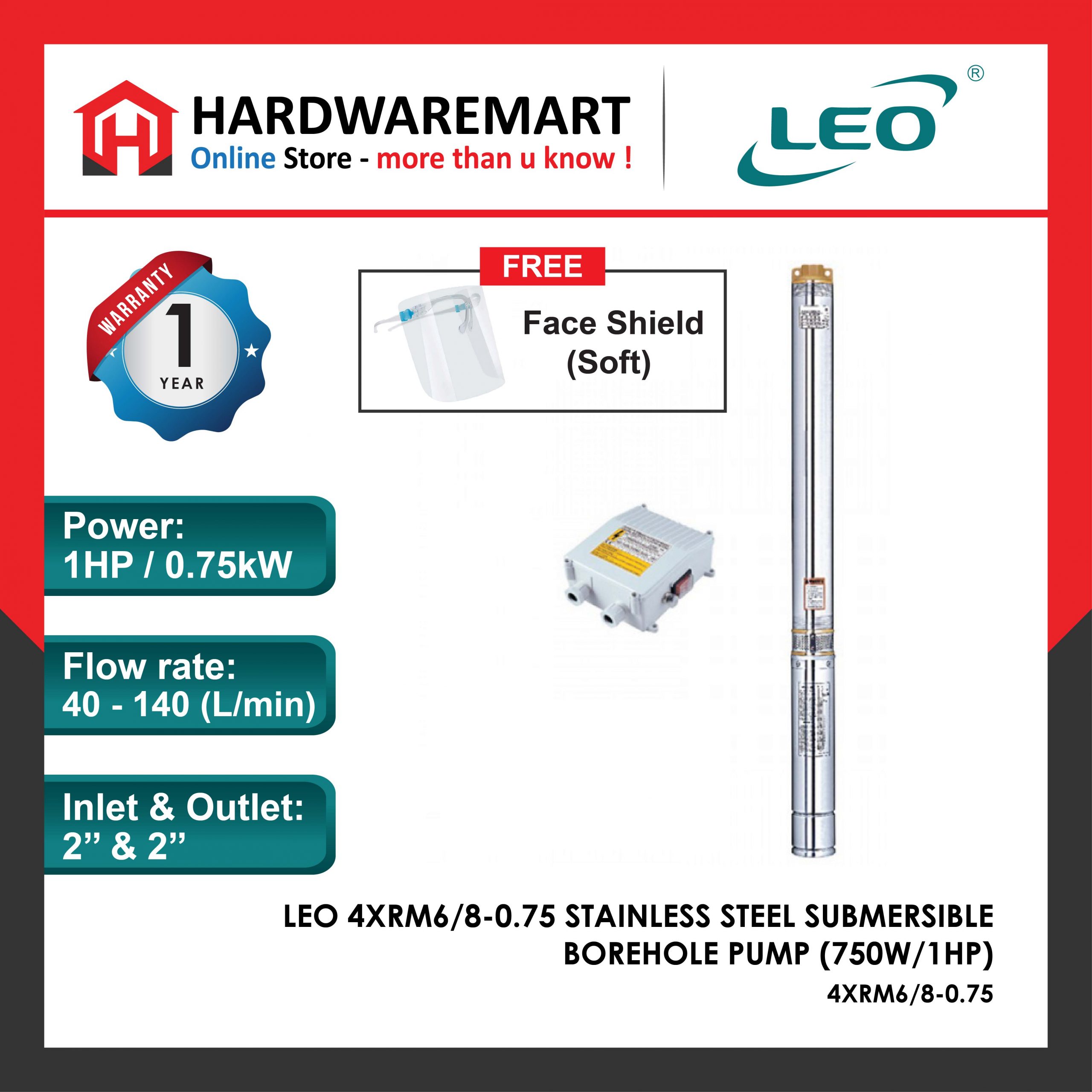

LEO SINGLE PHASE 4XRM6/8-0.75 SUBMERSIBLE BOREHOLE PUMP (750W/1HP)

Applications:

• For water supply from wells or reservoirs
• For domestic use, for civil and industrial applications
• For garden use and irrigation

Operating conditions

• Maximum fluid temperature up to +35°C
• Maximum sand content: 0.25%
• Maximum immersion: 80m
• Minimum well diameter: 5”

Motor and Pump

• Rewindable motor or full obturated screen motor
• Three-phase: 380V-415V/50Hz
• Single-phase: 220V-240V/50Hz
• Pumps are designed by casing stressed
• Curve tolerance according to ISO 9906

Power: 0.75kW / 1HP
Flow: 40-140 L/min
Head: 50m-17m
Max suction: 80m
Outlet: 2’’ x 2’’
