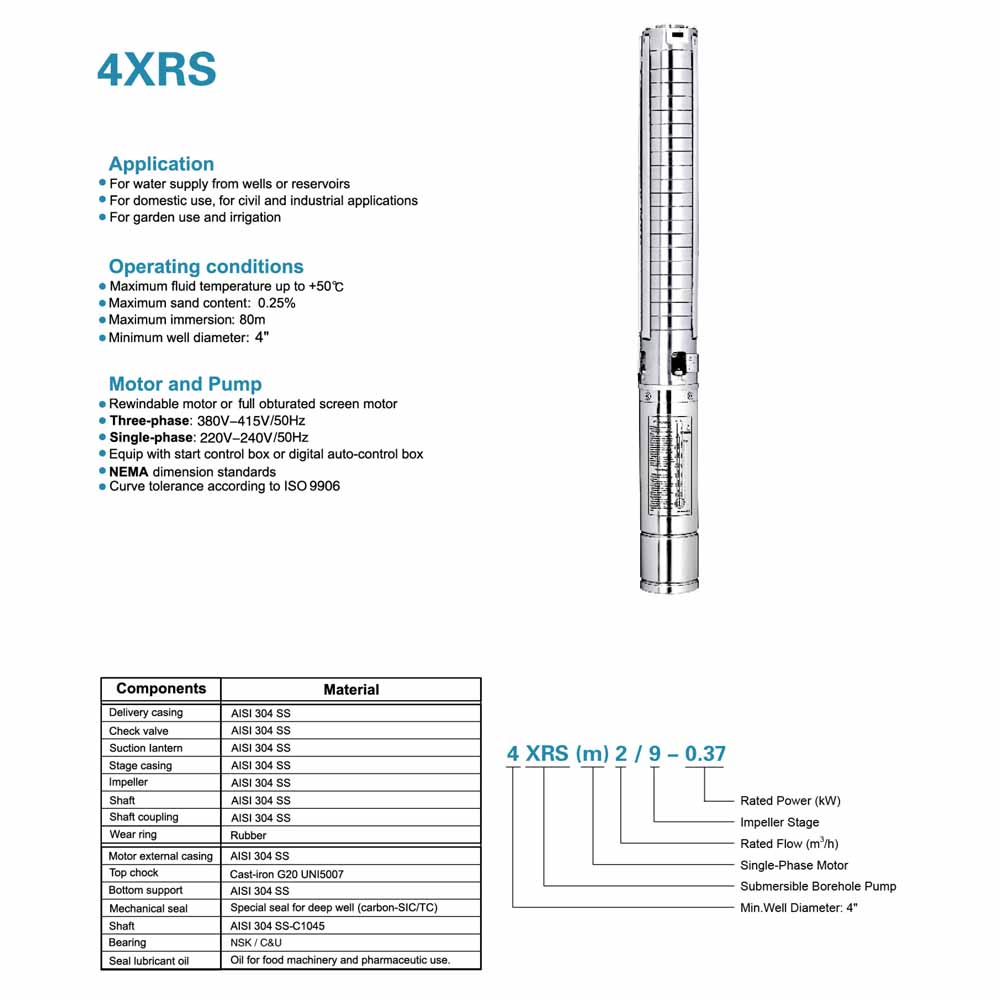

– For water supply from wells or reservoirs
– For domestic use, for civil and industrial applications
– For garden use and irrigation
Operating conditions
– Maximum fluid temperature up to +50°C
– Maximum sand content: 0.25%
– Maximum immersion: 80m
– Minimum well diameter: 4”
Motor and Pump
– Rewindable motor or full obturated screen motor
– Three-phase: 380V-415V/50Hz
– Single-phase: 220V-240V/50Hz
– Equip with start control box or digital auto-control box

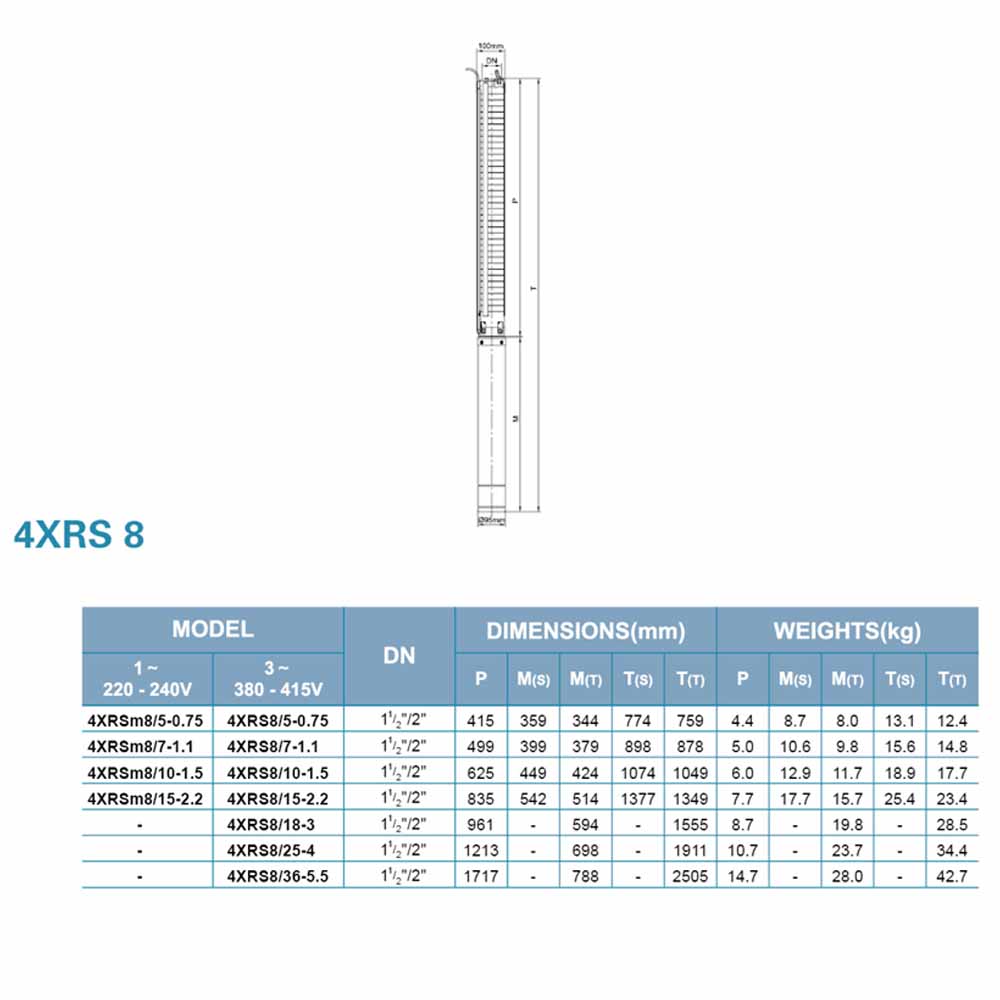

– NEMA dimension standards

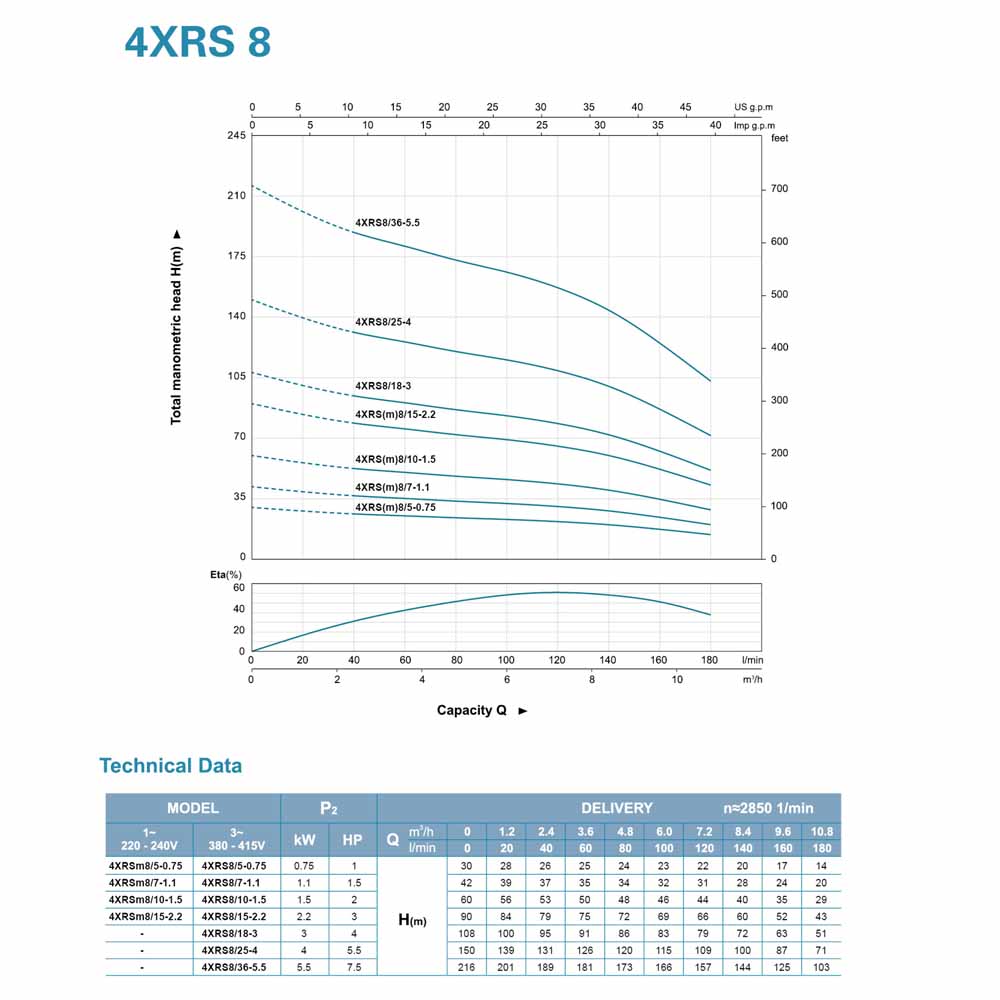

– Curve tolerance according to ISO 9906
– Impeller material: Stainless steel 304
Power: 2.2kW / 3HP
Flow: 20-180 L/min
Head: 85m-38m
Max suction: 80m
Outlet: 2’’
Brand: LEO Pump
