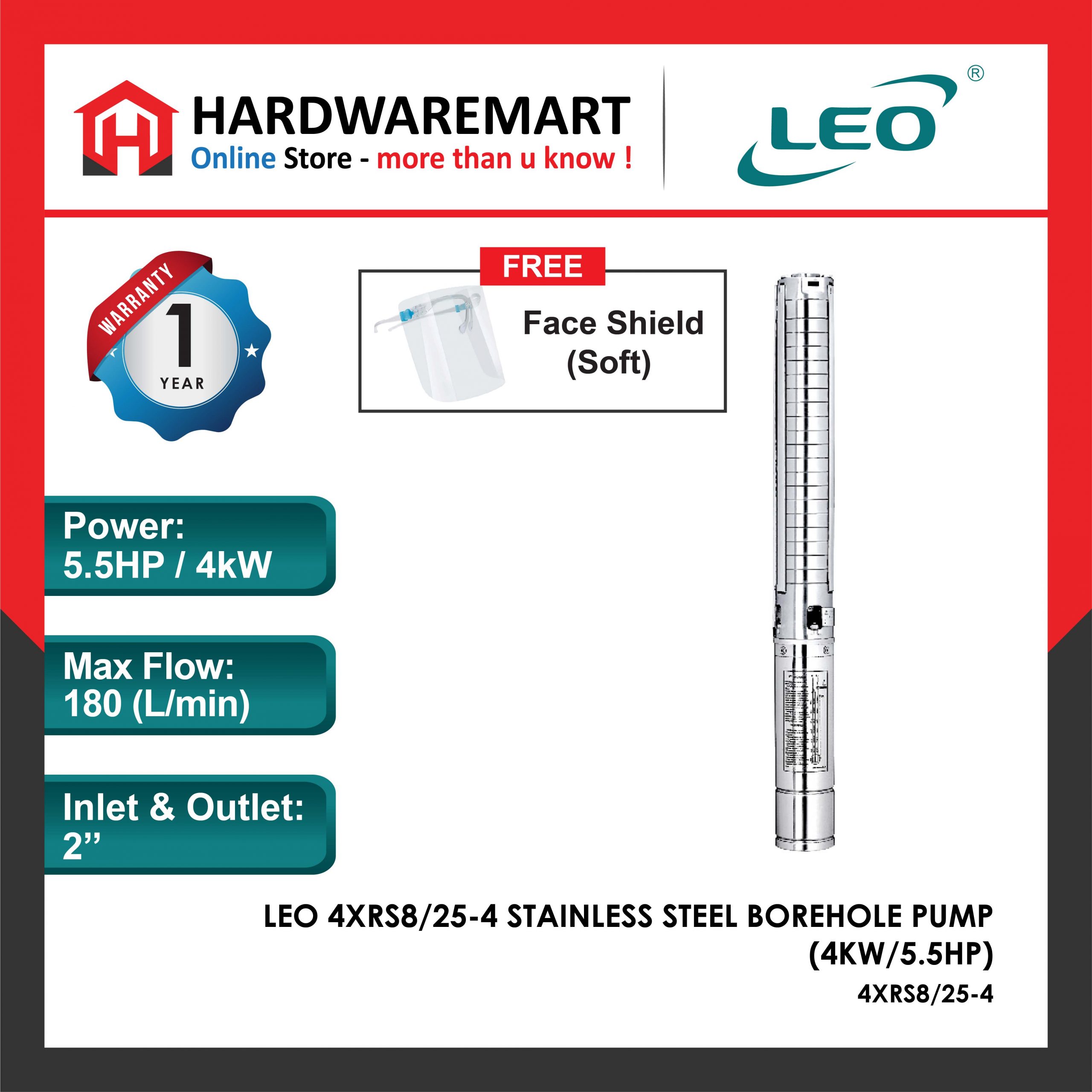

LEO 4XRS8/25-4 STAINLESS STEEL BOREHOLE PUMP PLANTATION Pam Air Perladangan [3 PHASE] (4KW/5.5HP)

Description

FREE: FACE SHIELD (SOFT)

Applications:

– For water supply from wells or reservoirs
– For domestic use, for civil and industrial applications
– For garden use and irrigation

Operating conditions

– Maximum fluid temperature up to +50°C
– Maximum sand content: 0.25%
– Maximum immersion: 80m
– Minimum well diameter: 4”

Motor and Pump

– Rewindable motor or full obturated screen motor
– Three-phase: 380V-415V/50Hz
– Single-phase: 220V-240V/50Hz
– Equip with start control box or digital auto-control box
– NEMA dimension standards
– Curve tolerance according to ISO 9906
– Impeller material: Stainless steel 304

Power: 4kW / 5.5HP
Flow: 20-180 L/min
Head: 142m-64m
Max suction: 80m
Outlet: 2’’
Brand: LEO Pump
