LEO 50WQ15-20-2.2 SUBMERSIBLE SEWAGE PUMP Pam Air Kumbahan [3 PHASE] (2.2kW/3HP)

Description

FREE: FACE SHIELD (SOFT)

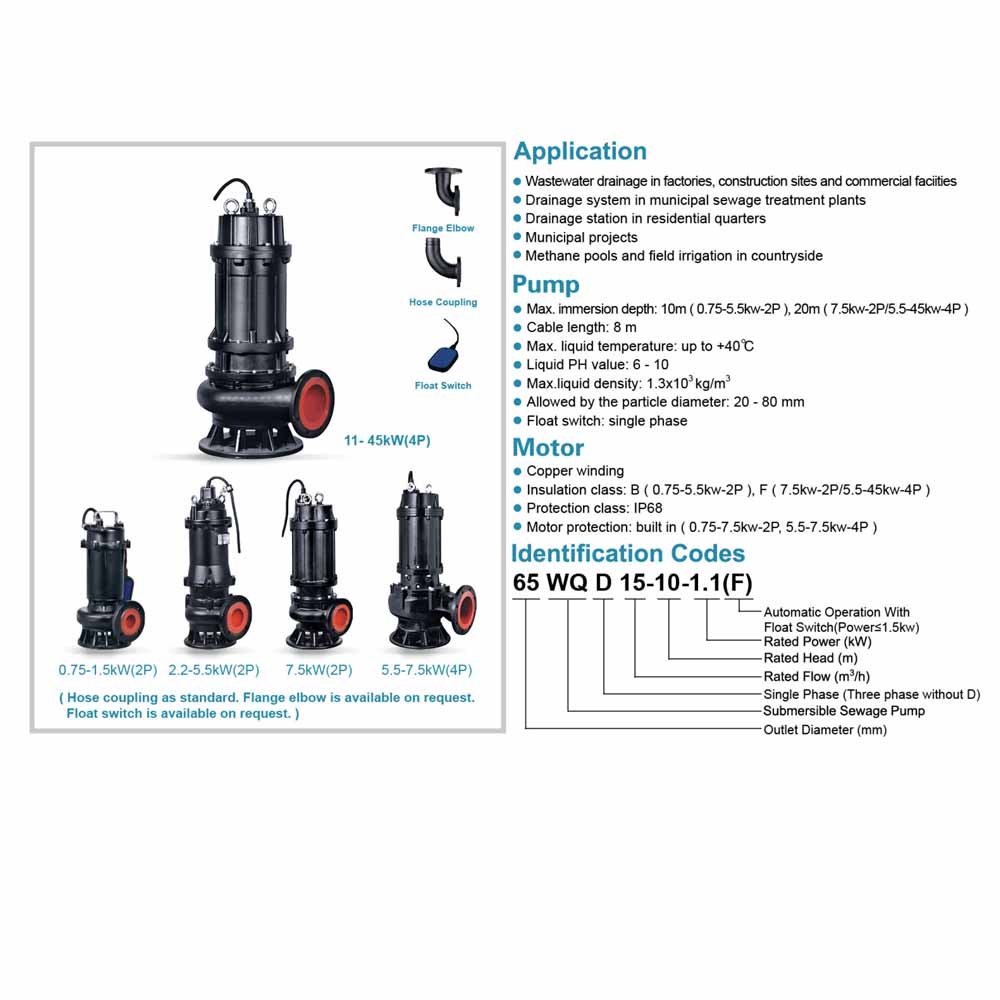

Applications:

– Drainage of waste water from the attention tank, purifying tank and sewage tank in water treatment plant.
– Drainage of waste water containing fibrous additives from leather factory and food processing factory.
– Sewage management, accumulated water, septic tank, stock farm.
– Pumping sewage form hotels, restaurants, schools and public buildings.

Features

– High efficient and anti-clogging Enclosed Channel impeller design
– Flexible installations with hoses, pipes or quick-coupling systems

Working Conditions

– Liquid temperature: 0 – 40°C
– Max immersion depth: 5m

Motor

– Frequency / Pole number: 50Hz/2
– Insulation class: F
– Protection class: IPX8
– Bearing: Ball type
– Mechanical seal: Double-end mechanical seals

Power: 2.2kW / 3HP
Flow: 250L/min
Head: 20m

Immersion depth: 5m
Impeller passage: 25mm
Outlet: 2”
Brand: LEO Pump
