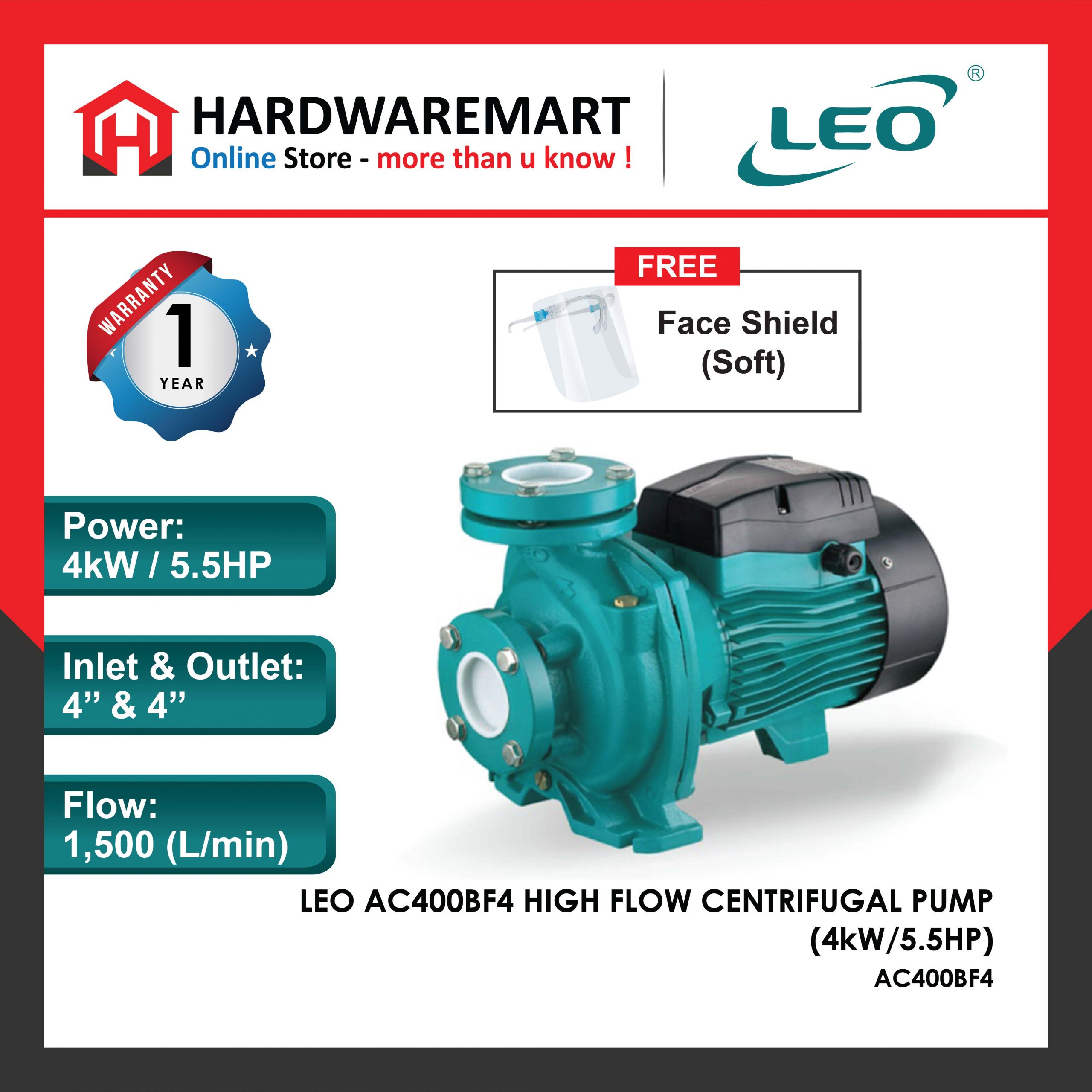

LEO AC400BF4 HIGH FLOW CENTRIFUGAL PUMP Pam Air Rumah Kolam [3 PHASE] (4kW/5.5HP)

Description

FREE: FACE SHIELD (SOFT)

LEO AC400BF4 HIGH FLOW CENTRIFUGAL PUMP (4kW/5.5HP)

Applications:

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
• Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting and cold and hot water, and supporting equipment etc.

Pump

• Cast iron pump body and support under special anti-rust treatment
• AISI 304 shaft
• Max. liquid temperature: +40°C
• Max. suction: +8m

Motor

• C&U bearing
• Motor with copper winding
• Built-in thermal protector for single phase motor (≤1.5 kW)
• Insulation class: F
• Protection class: IPX4
• Max. ambient temperature: +40°C

Power: 4kW / 5.5HP
Flow: 400-1500 L/min
Head: 16-12.5m
Max suction: 8m
Outlet: 4” x 4”
