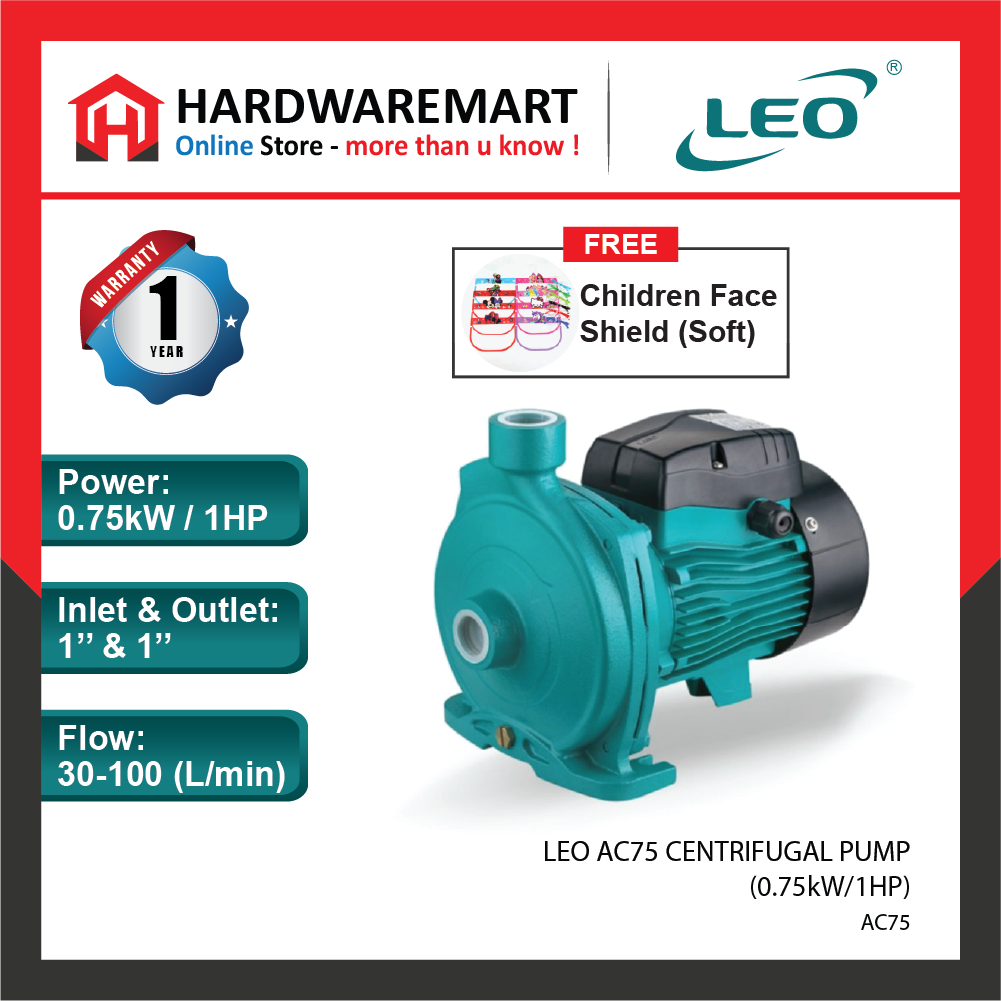

LEO AC75 CENTRIFUGAL PUMP Pam Air Rumah Kolam [3 PHASE] (0.75kW/1HP)

Description

FREE: FACE SHIELD (SOFT)

LEO THREE PHASE AC75 CENTRIFUGAL PUMP (0.75kW/1HP)

Applications:

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
• Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting and cold and hot water, and supporting equipment etc.

Pump

• Cast iron pump body and support under special anti-rust treatment
• AISI 304 shaft
• Max. liquid temperature: +40°C
• Max. suction: +8m

Motor

• C&U bearing
• Motor with copper winding
• Built-in thermal protector for single phase motor
• Insulation class: F
• Protection class: IPX4
• Max. ambient temperature: +40°C

Power: 0.75kW / 1HP
Flow: 30-100 L/min
Head: 34m-16m
Max suction: 8m
Outlet: 1’’ & 1’’
