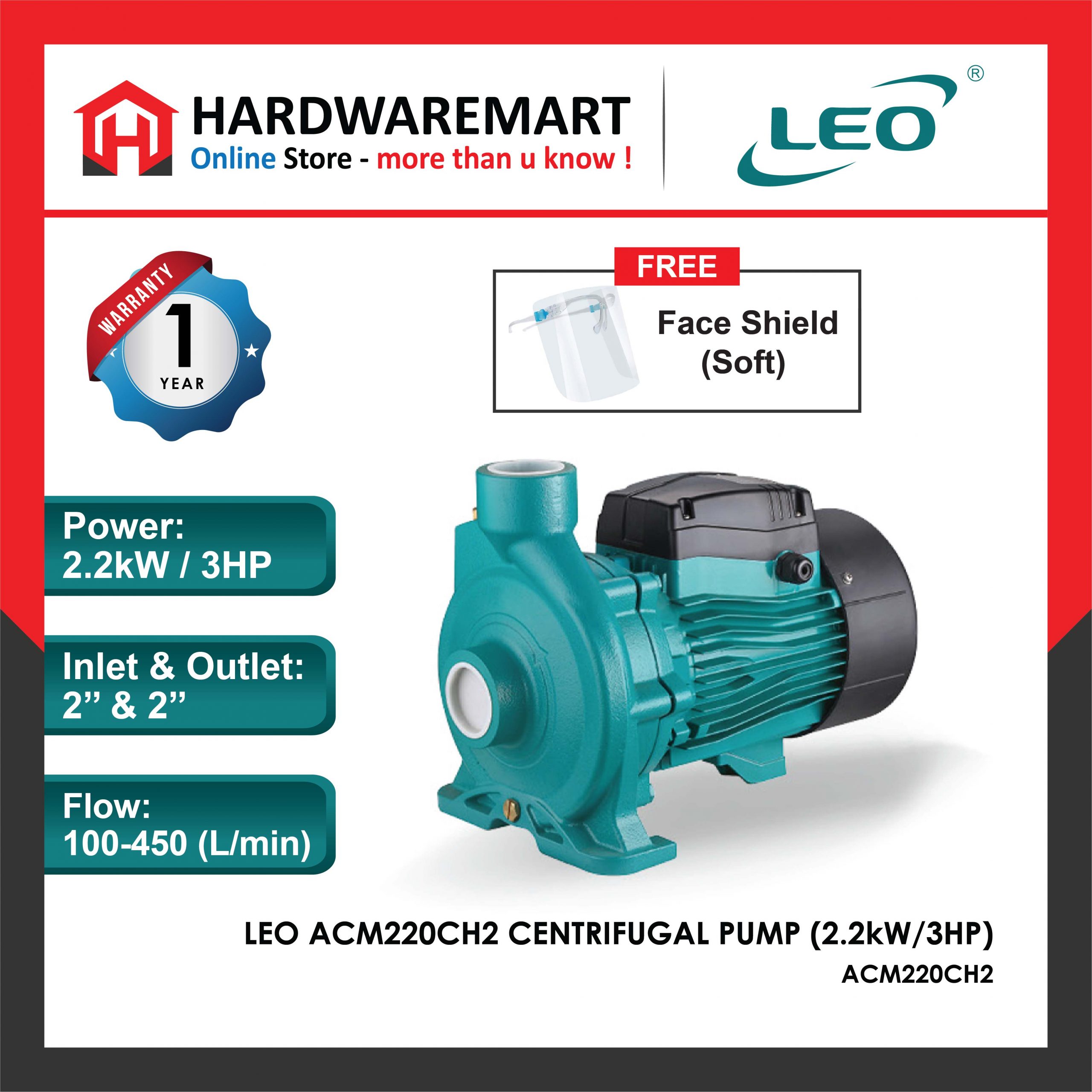

LEO SINGLE PHASE ACM220CH2 CENTRIFUGAL PUMP (2.2kW/3HP)
Applications:
Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting and cold and hot water, and supporting equipment etc.
Pump
Cast iron pump body and support under special anti-rust treatment
AISI 304 shaft
Max. liquid temperature: +40°C
Max. suction: +8m
Motor
C&U bearing
Motor with copper winding
Insulation class: F
Protection class: IPX4
Max. ambient temperature: +40°C
Power: 2.2kW / 3HP
Flow: 100-450 L/min
Head: 30m-21m
Max suction: 8m
Outlet: 2’’ x 2’’
