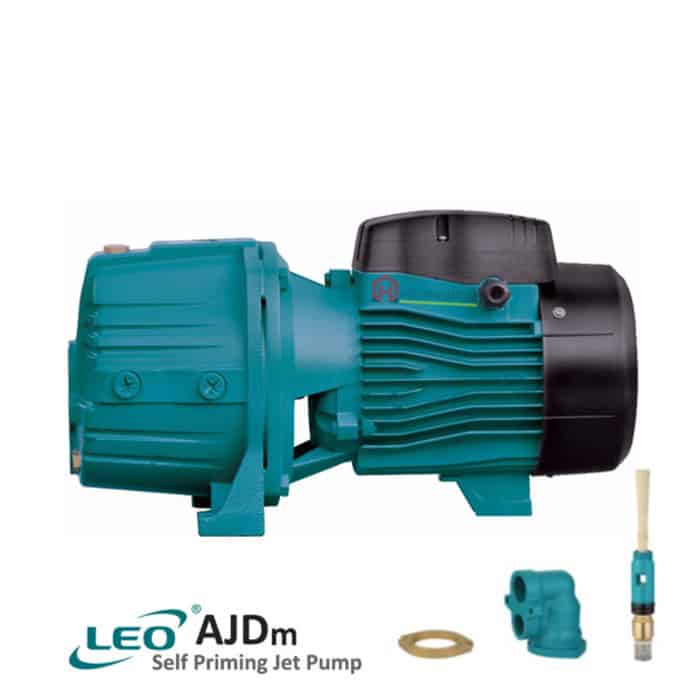

LEO AJDM110/4H Self-Priming Jet Pump for Deep Well
Pump:
- AISI 304 shaft
- Stainless steel impeller
- Cast iron pump body and support under special anti-rust treatment.
- Max. liquid temperature: +40°C
- Max. suction: +40m
Motor:
- C & U bearing
- Motor with copper winding.
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max. ambient temperature: +40°C
Application:
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Suitable for lifting water from the well.sprinkling irrigation in garden,pressure boosting of running water and supporting equipment etc.
- Brand : LEO
- Model : AJDM110/4H
- Power Consumption : 1.5HP/1100W
- Voltage : 220V (50Hz)

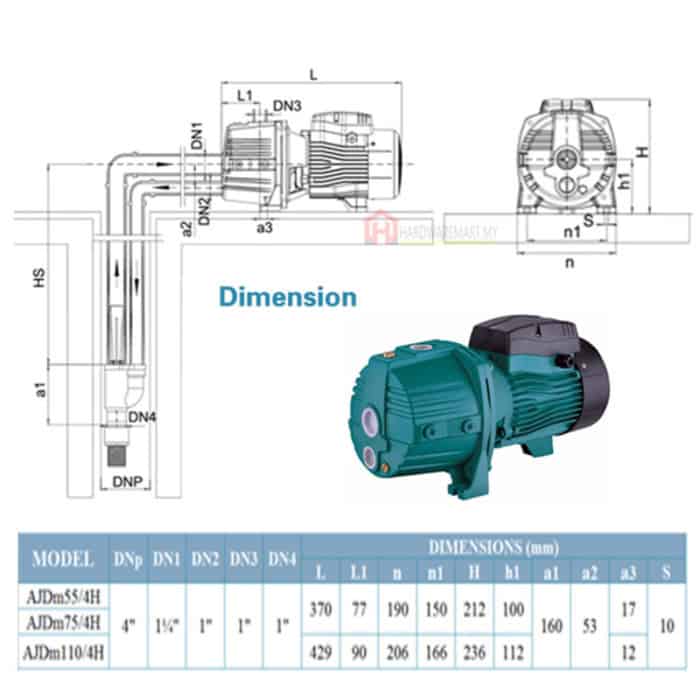

- Inlet – Outlet : 1-1/4″ x 1″ (32mm x 25mm)
- Max Flow : 90L/min
- Max Head : 95m
- Max Suction : 40m
- Stainless Steel Impeller
- Motor with Full Cooper Winding
- Max.liquid temperature :+40C
- Warranty period : 6 Months
- Warranty type : Local Supplier Warranty
