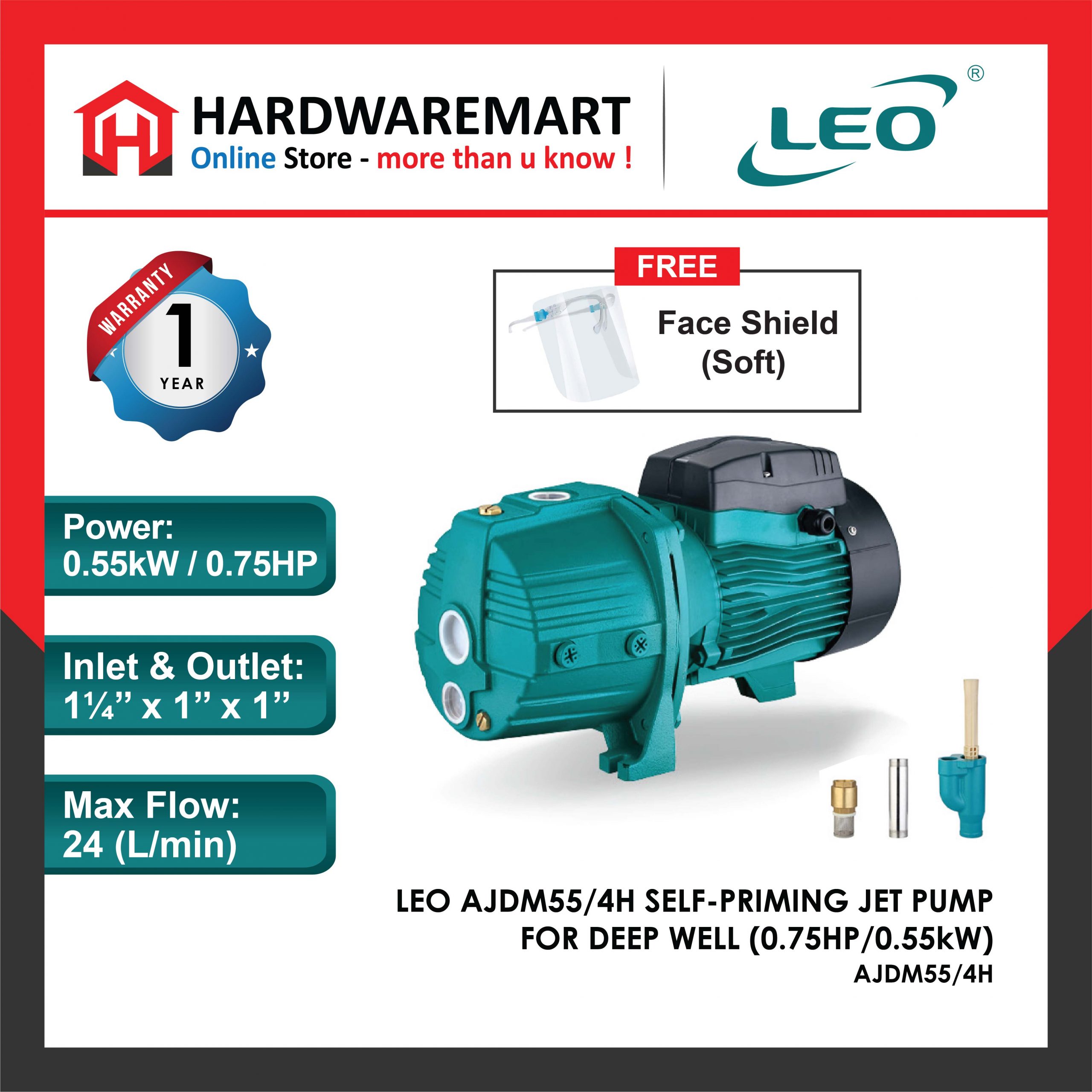

LEO AJDM55/4H JET PUMP FOR DEEP WELLS Pam Air Perigi [1 PHASE] (0.55kW/0.75HP)

Description

FREE: FACE SHIELD (SOFT)

APPLICATION

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
• Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.

PUMP

• Cast iron pump body and support under special anti-rust treatment
• Stainless steel impeller
• AISI 304 shaft
• Max. liquid temperature: +40°C
• Max. suction: +40m

MOTOR

• C&U bearing
• Motor with copper winding
• Built-in thermal protector for single phase motor
• Insulation class: F
• Protection class: IPX4
• Max. ambient temperature: +40°C

Power: 0.55kW / 0.75HP
Flow: 5-24 L/min
Head: 45m-13m
Max suction: 40m
Outlet: 1¼’’ x 1’’ x 1’’
