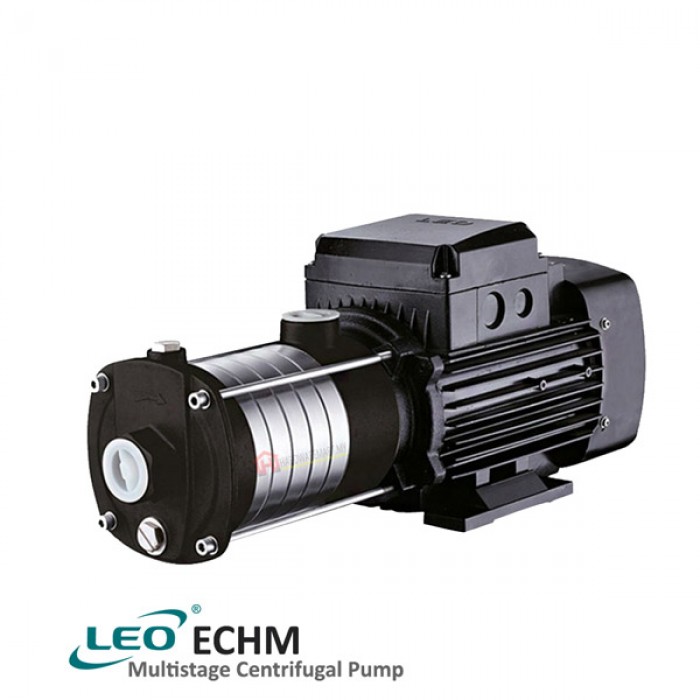

LEO ECHM4-50E Multistage Centrifugal Pump (with Press Control)
Brand : LEO
Model : ECHM4-50E
Power Consumption : 1.5HP / 1100W
Voltage : 220V (50Hz) / 415V (50Hz)
Inlet – Outlet : 1-1/4 x 1″ (32mm x 25mm)
Max Flow : 117L/min
Max Head : 46m
Max Suction : 8m
Stainless Steel Impeller
Motor With 100% Cooper Winding
Max.liquid temperature :+40C
Pump:
AISI 304 shaft
Max. liquid temperature: +85°C
Max. suction: 8 m
Liquid PH valve: 4 – 10
Motor:
Motor with copper winding
Built-in thermal protector for single phase motor
Insulation class: F
Protection class: IP55
Max. ambient temperature: +40°C
Application:
It is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc
