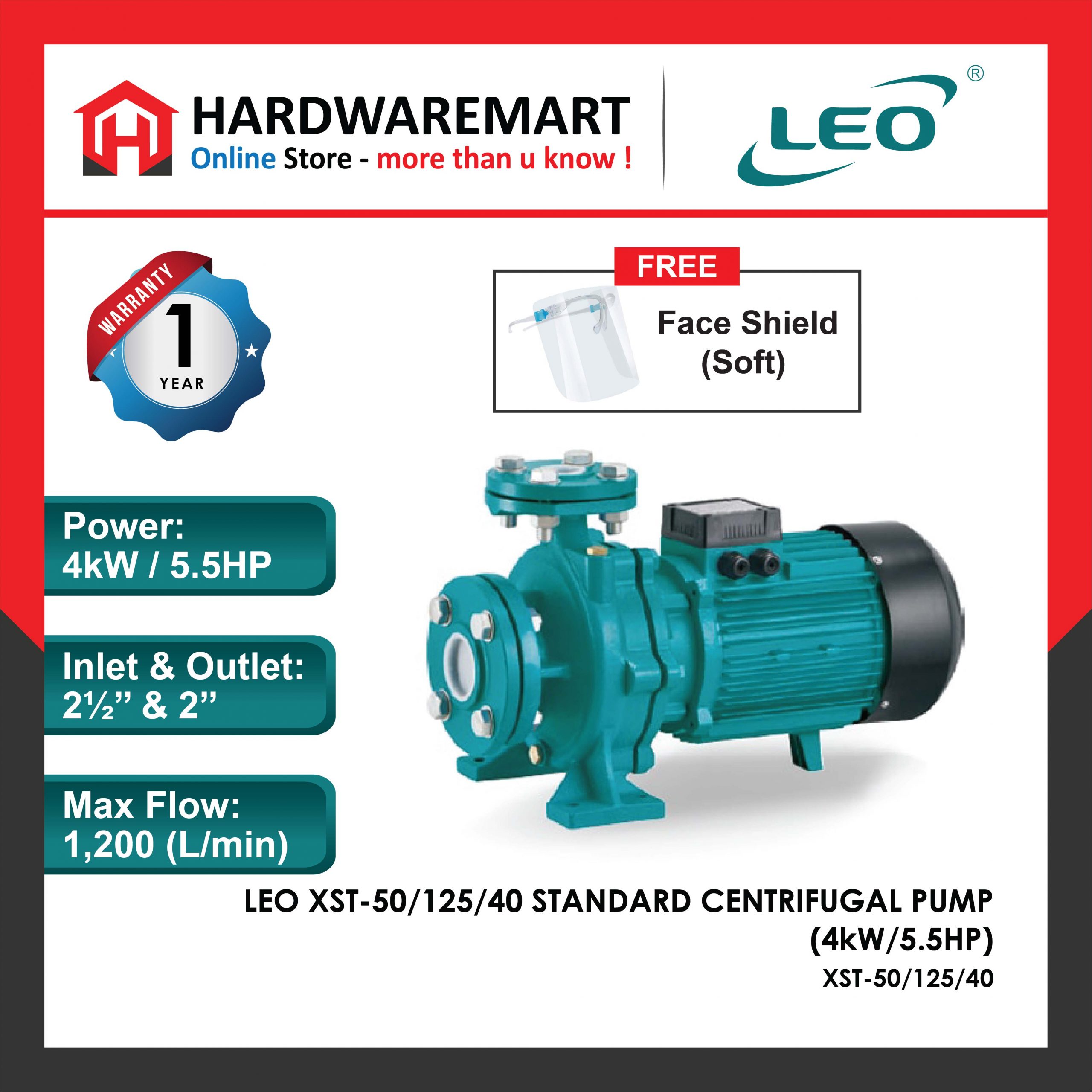

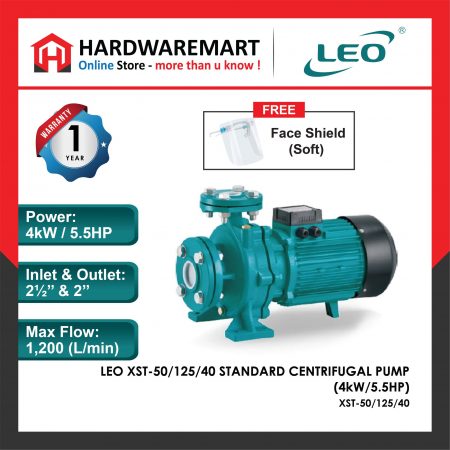

LEO XST-50/125/40 STANDARD CENTRIFUGAL PUMP Pam Air [3 PHASE] (4kW/5.5HP)

Description

FREE: FACE SHIELD (SOFT)

Applications:

• Circulation and transfer of clean, chemically non-aggressive water and other liquids
• Water supply & irrigation
• Water circulation in air conditioning systems

Operating conditions

• Delivery: up to 220 m3/h
• Head: up to 95m
• Liquid temperature: Standard (-10°C to 85°C)     Upon request: -20°C to 120°C
• Maximum operating pressure: 12 bar (PN12). Anti-clockwise rotation when facing pump’s suction port.
• Impeller: AISI304/HT200
• Mechanical seal in compliance with DIN 24960
• Lubricated by internal recirculating pumped liquid
• Counter flange available on request

Motor

• Closed construction, external ventilation
• Insulation class: F
• Protection class: IP54
• Performance in compliance with CEI 2-3 (IEC 34.1)
• Max. ambient temperature: +40°C
• Overload protection

Construction features

• Single-impeller centrifugal pump featuring axial intake and radial discharge
• Inlet and outlet DN in compliance with EN 733(ex DIN 24255) and UNI 7467
• Flanges in compliance with UNI 2236 and DIN 2532 Rear entry (impeller, control valve and motor can be extracted without disconnecting the pump body from the pipes)

Power: 4kW / 5.5HP
Flow: 600-1200 L/min
Head: 24.5m – 11.5m
Outlet: 2½’’ & 2’’
