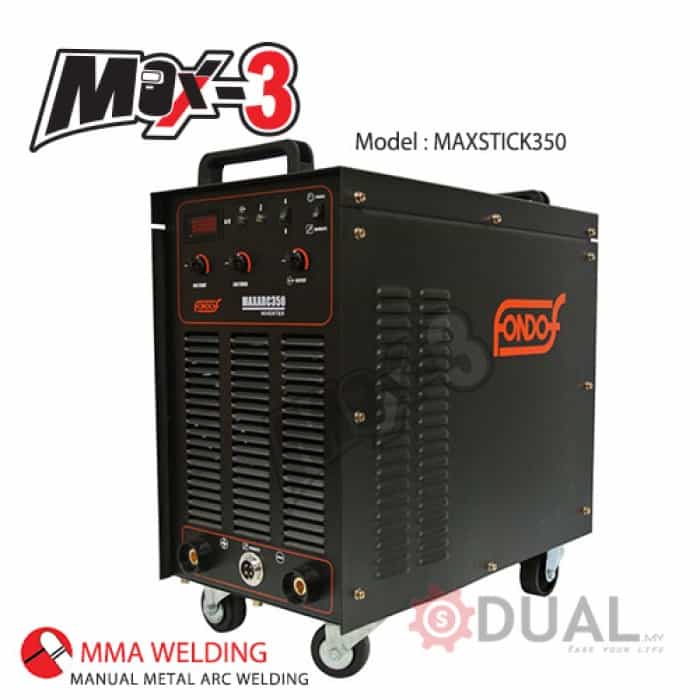

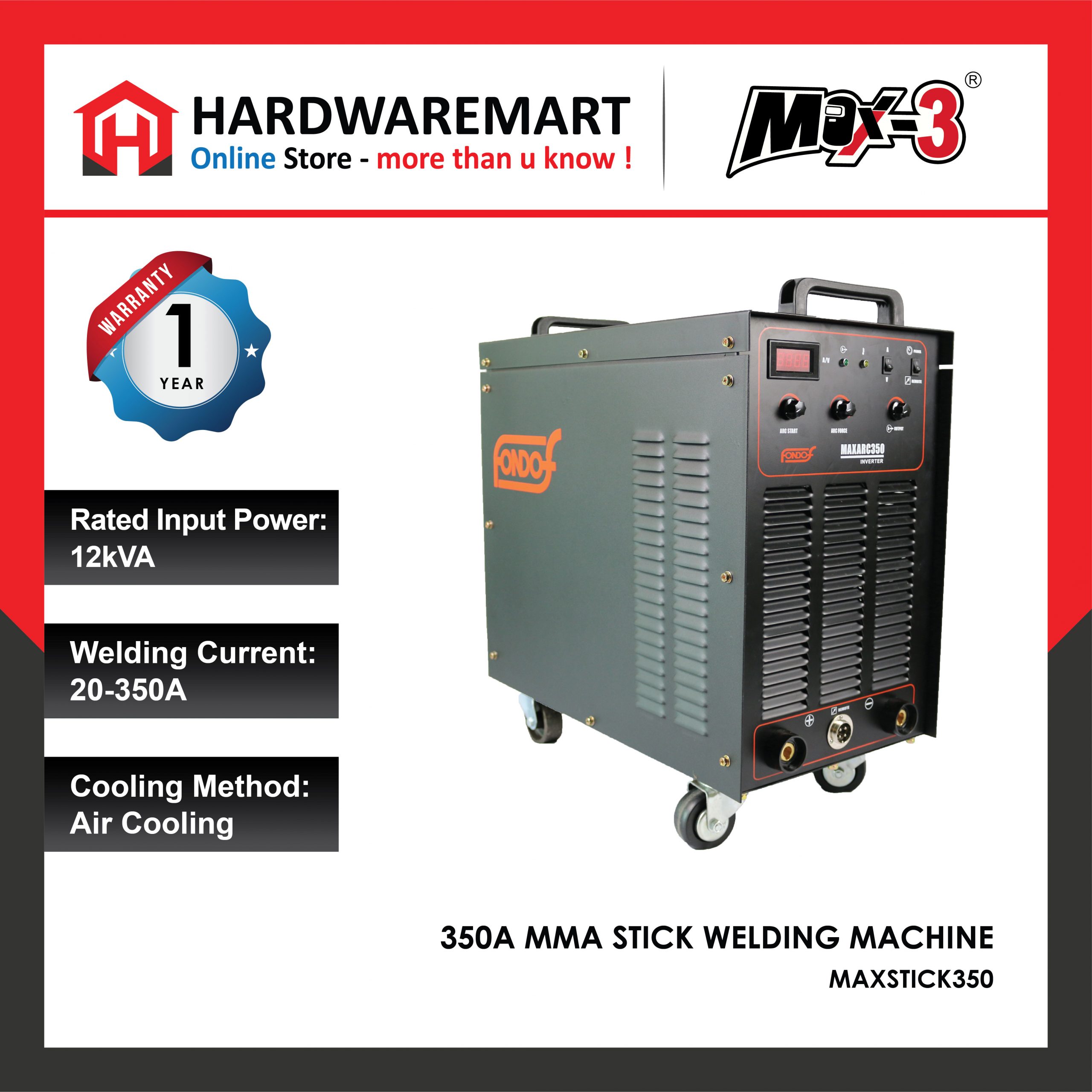

MAX-3 *350A MMA STICK WELDING MACHINE MAXSTICK350
Original price was: RM6,000.00.RM3,250.00Current price is: RM3,250.00.
Brand: Max-3
Size (length*width*height): 600mm x 300mm x 600mm
5 in stock
Description
The manual metal arc (MMA) welding, also known as shield metal arc welding (SMAW) or stick welding, is a manual welding process that uses a consumable electrode coated in flux to lay the weld. Due to the simplicity of its equipment and operation, currently it is one of the most popular welding processes and is used extensively in the construction of steel structures and metal fabrication
Features
- With advanced PWM control technology
- Accurate current preset function guarantees actual current
- Multi-protections highly reliable
- Friendly control panel. Applicable for acidic rod, alkalescent rod, fibrin rod and refrantory steel rod.
Accessories Includes
- Remote Control for Model 350 / 400 / 500 / 630
WARRANTY:
1) 1 YEAR WARRANTY subject to the manufacturing defect with applied terms and conditions.
2) Warranty shall strictly subject to manufacturing defect only excluding wiring, wear and tear parts.
Additional information
Weight | 39.00 kg |
---|---|
Dimensions | 60 × 30 × 60 cm |
Brand | Max3 |
Rated Input Voltage (V/Hz) | : | 3/415V±10%/50Hz |
Rated Input Current (A) | : | 17.3 |
Rated Input Power (KVA) | : | 12 |
External Breaker Model | : | 20A |
Input Cabel Specification | : | 4mm2 |
Welding Current (A) | : | 20 – 350 |
No-load Voltage (V) | : | 21-34 |
Rated Duty Cycle | : | 60% |
Efficiency | : | ≥0.89 |
Cover Protection Grade | : | IP21S |
Cooling Method | : | Air Cooling |
Packaging Size | : | 600 X 300 X 600 |
Weight (kg) | : | 39 |
Power Factor | : | 0.95 |
