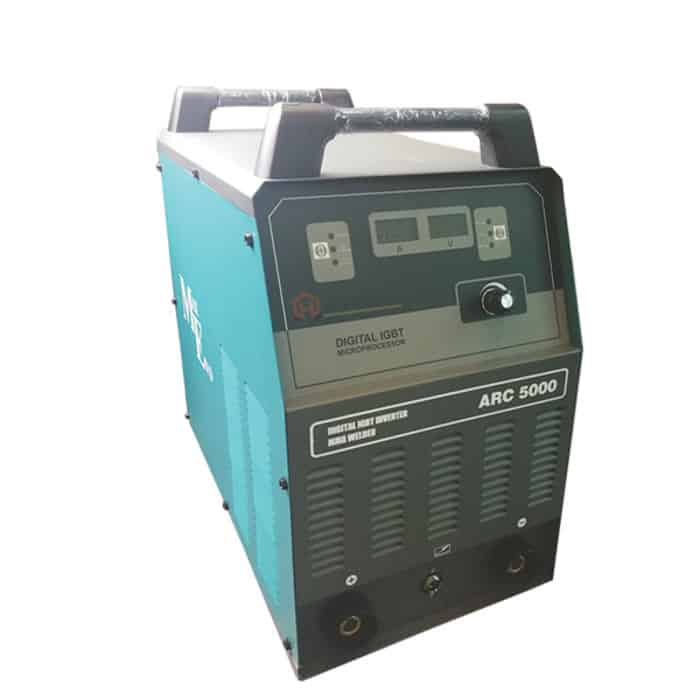

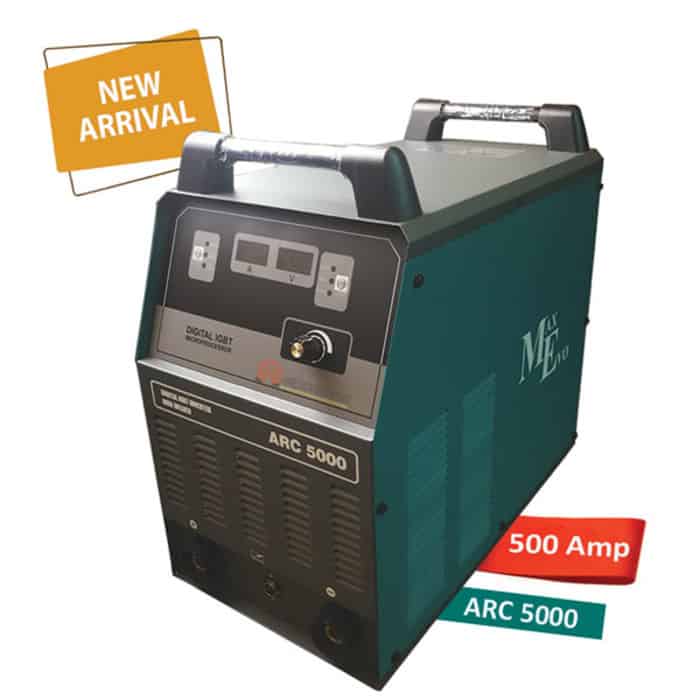

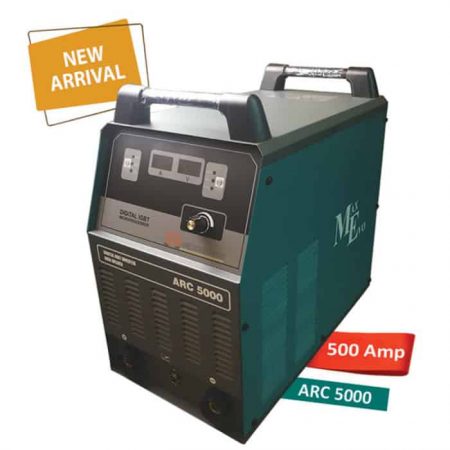

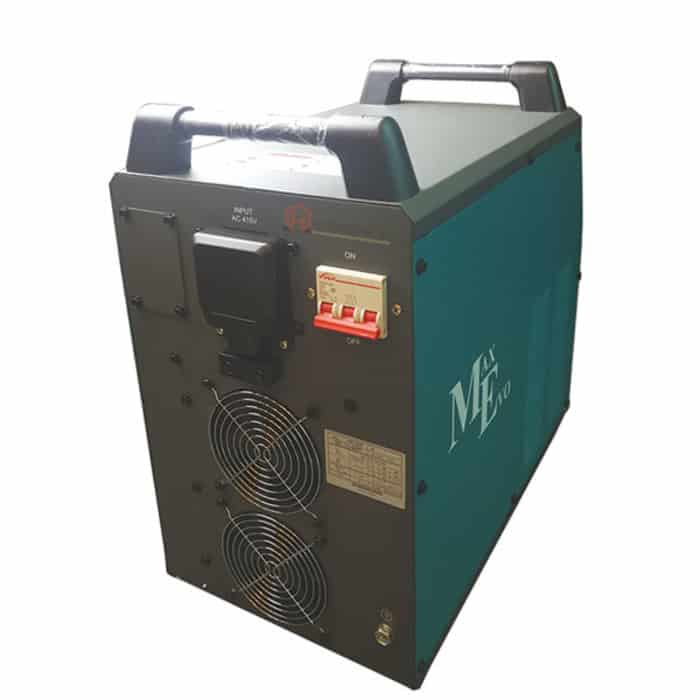

MAXEVO ARC5000 500A ARC WELDING MACHINE
Original price was: RM4,200.00.RM2,100.00Current price is: RM2,100.00.
Brand: MaxEvo
- Voltage : AC415V / 3PH
- Frequency : 50/60 HZ
- Power capacity : 25.3 KVA
- Input current : 38.4 A
- No-load voltage : 67.5V
- Output current range : 20-500A
- Output Voltage : 40V
- ARC force adjustment range : 0-20
- Duty cycle : 60%
- Efficiency : 85%
- Power Factor : 0.93
- Insulation class : F
Size (length*width*height): 500mm x 280mm x 435mm
5 in stock
Description
FREE: MAX 3 UMBRELLA
Features:
- Digital model with MCU control technology providing multi parameters adjustment.
- ARC starts success can be assured with arc striking control function.
- Perfect Welding in all situations and positions.
Applications:
- Metal workshops
- Construction industry
- Agriculture
- Repair and maintenance

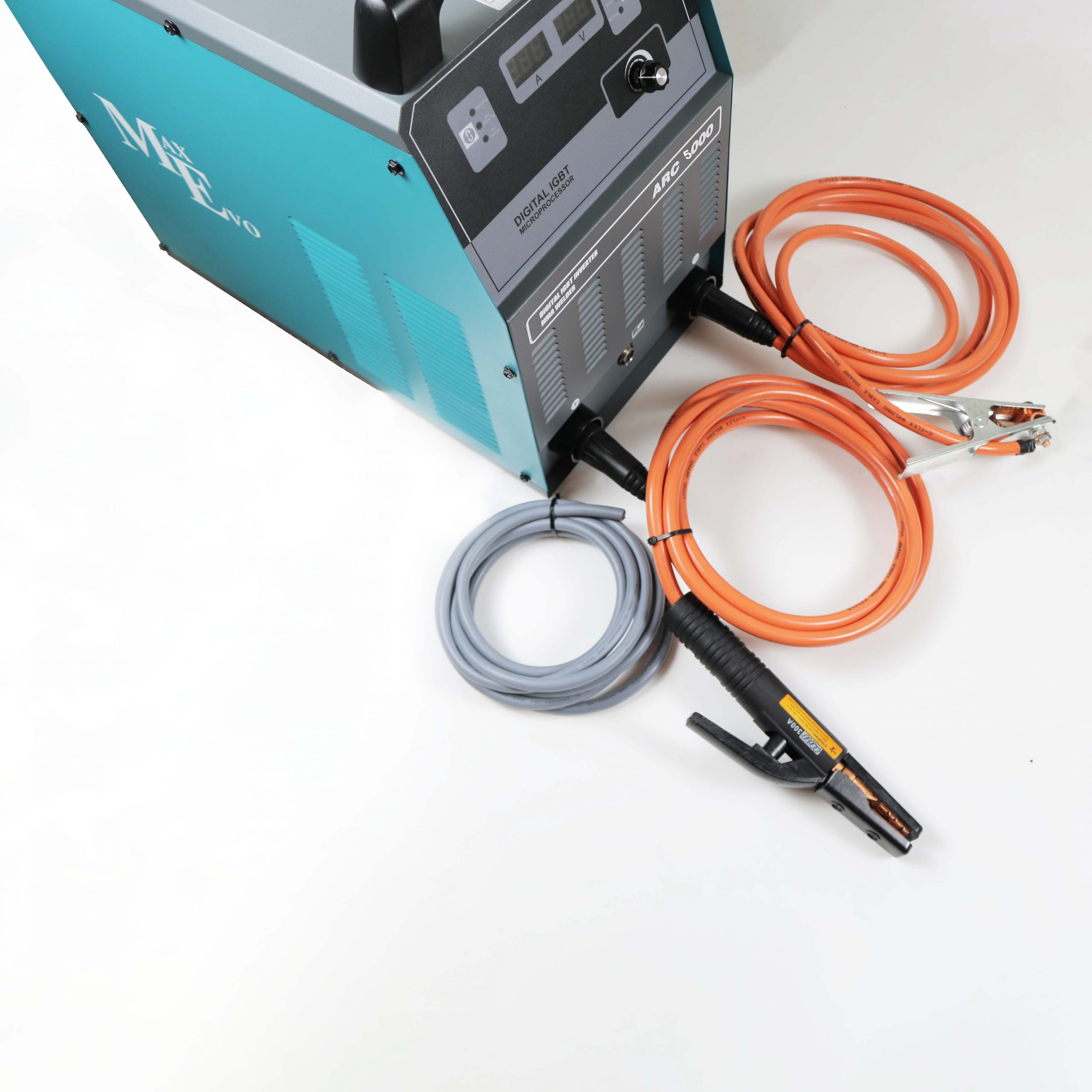

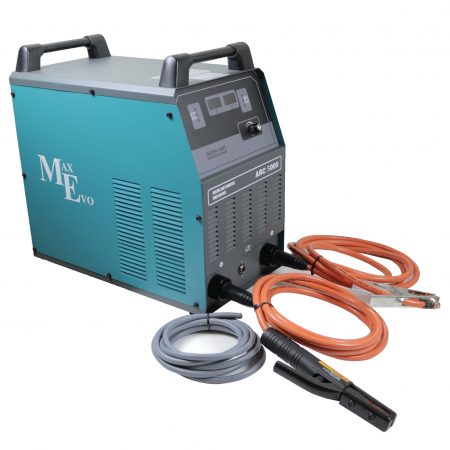

What’s in the box:
- Input power cord
- Earth cable and clamp
- Welding cable and clamp
WARRANTY:
1) 1 YEAR WARRANTY subject to the manufacturing defect with applied terms and conditions.
2) Warranty shall strictly subject to manufacturing defect only excluding wiring, wear and tear parts.
Additional information
Weight | 29.00 kg |
---|---|
Dimensions | 50 × 28 × 43.5 cm |
Brand | MAXEVO |
Input power voltage
Input voltage frequency Rated input power capacity Rated input current No-load voltage Output current range Rated output voltage ARC force adjustment range Duty cycle Efficiency Power Factor Insulation class Protection class Weight Dimension (mm) |
AC415V /3 PH
50/60 HZ 25.3 KVA 38.4 A 67.5 V 20-500 A 40 V 0-20 60 % 85 % 0.93 F IP21S 24.5 KG 500 x 280 x 435 |
